Home >> Products >> CBF Series-4 Forging Stations

CBF Series-4 Forging Stations

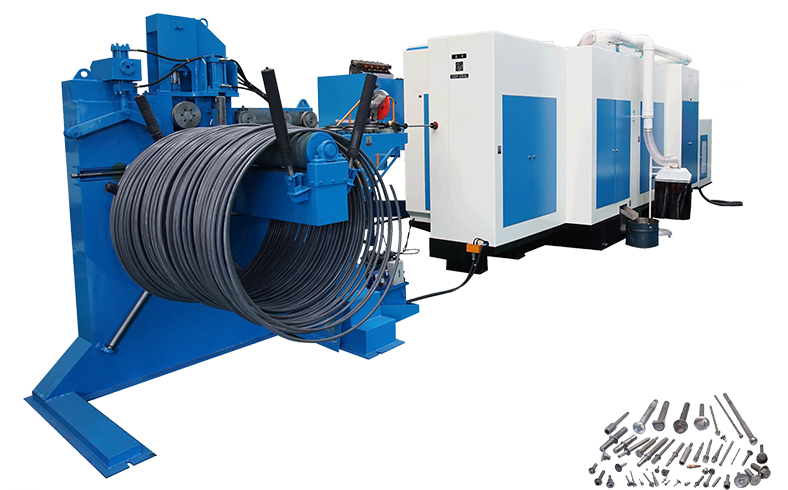

CBF-254L

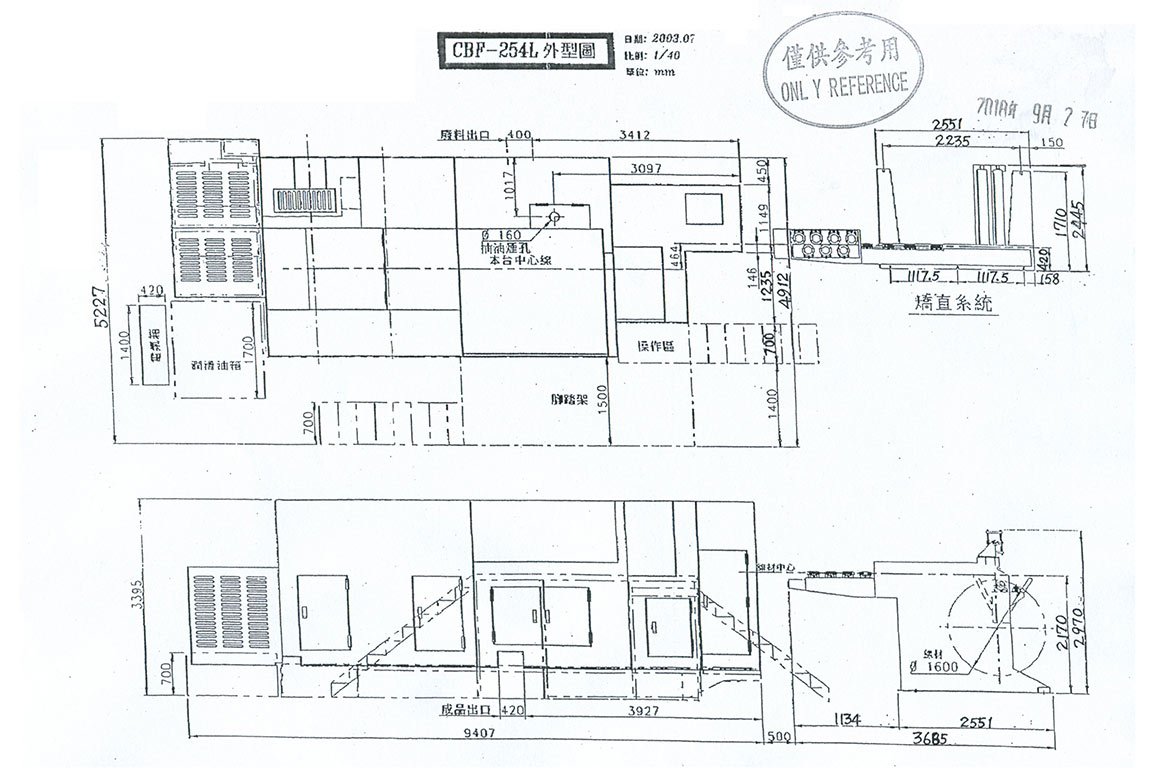

Plane appearance (click to enlarge)

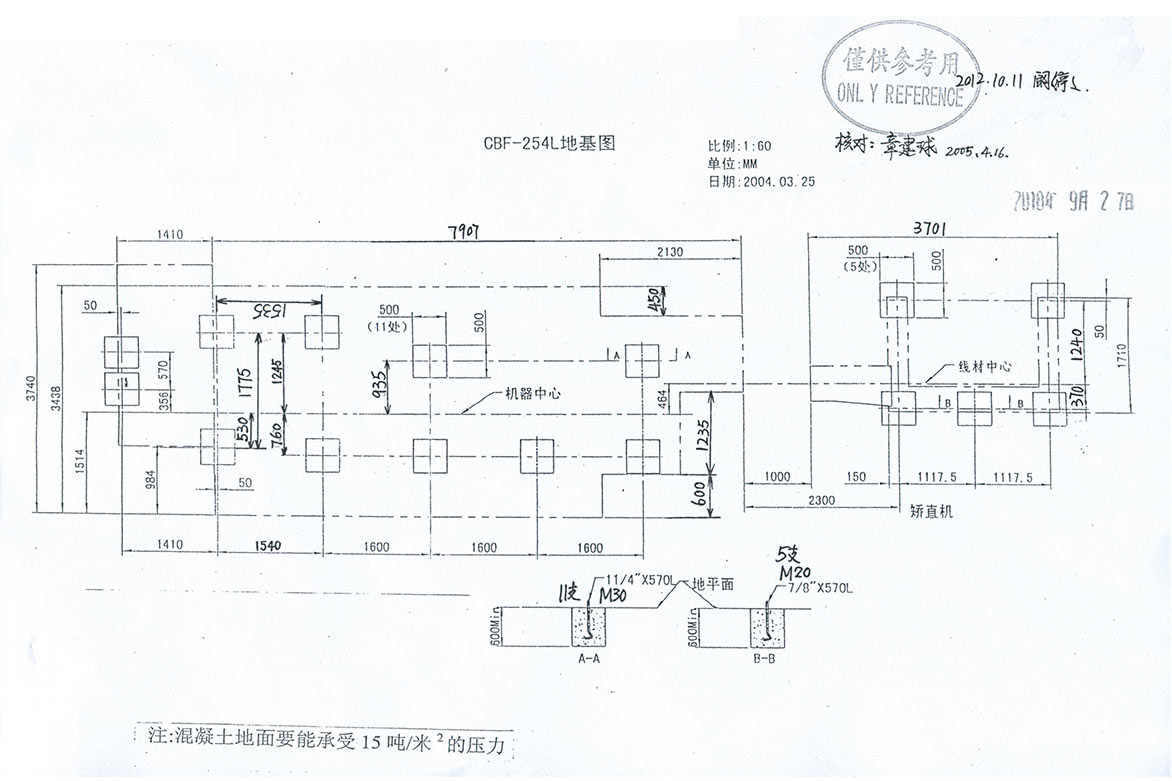

Flat foundation plan (click to enlarge)

Main Parameters

M/C Type	Unit	CBF-44S	CBF-64S	CBF-84S	CBF-84SM	CBF-84L	CBF-84LL	CBF-104S	CBF-104L	CBF-104LL	CBF-134L	CBF-134LL	CBF-164S	CBF-164LL	CBF-164UL	CBF-204L	CBF-204LL	CBF-254S	CBF-254L
No. of Forging Station	No.	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4	4
Forging Force	kgs	16000	40000	60000	60000	80000	80000	80000	80000	90000	120000	120000	210000	210000	210000	350000	350000	430000	430000
Max. Cut-off dia.	mm	φ5	φ8	φ10	φ10	φ10	φ10	φ12	φ12	φ12	φ15	φ15	φ18	φ18	φ18	φ23	φ23	φ26	φ30
Max.Cut-off Length	mm	66	95	100	100	155	230	133	185	230	190	285	195	350	500	240	360	253	320
Maximum Output	pcs/min	180~300	140~240	120~200	120~160	140	120	95-160	80~150	55~110	75~120	45~80	70~110	40~70	35~50	55~80	40~65	40~60	35~62
P.K.O.Stroke	mm	10	15	26	26	26	30	20	30	30	50	45	30	46	60	48	46	50	46
K.O.Stroke	mm	56	80	85	85	140	215	110	160	215	160	280	170	320	480	220	325	180	280
Main Slider Stroke	mm	114	136	140	140	230	320	190	260	336	270	380	260	490	690	346	496	330	446
Main Motor	kW	7.5	15	22	22	22	22	30	30	30	37	37	55	55	75	55	75	90	90
Cut-off die dia.	mm	φ42x30L	φ30x45L	φ35x50L	φ35x62L	φ35x60L	φ35x60L	φ45x59L	φ45x59L	φ45x59L	φ63x69L	φ55x70L	φ60x90L	φ64x100L	φ74x105L	φ75x120L	φ75x120L	φ80x130L	φ99x150L
Punch die dia.	mm	φ31x65L	φ40x90L	φ45x115L	φ45x115L	φ45x115L	φ45x115L	φ53x115L	φ53x112L	φ53x112L	φ60x178L	φ60x1229L	φ75x185L	φ75x185L	φ75x250L	φ90x215L	φ90x215L	φ120x270L	φ120x270L
Main die dia.	mm	φ38x85L	φ50x115L	φ60x120L	φ60x120L	φ60x165L	φ60x240L	φ75x135L	φ75x185L	φ75x240L	φ86x190L	φ86x305L	φ100x190L	φ100x345L	φ100x510L	φ125x240L	φ125x345L	φ140x250L	φ148x300L
Die Pitch	mm	46	60	80	80	80	80	94	94	94	110	110	120	120	120	140	140	160	160
Approx. Weight	kgs	6500	10000	14500	14500	21000	23000	18000	21000	24500	26000	38000	43000	60000	80000	62000	75000	105000	131000
Normal Bolt Size	mm	2~4	3~6	5~8	5~8	5~8	5~8	6~10	6~10	6~10	8~12.7	8~12.7	10~16	10~16	10~16	12~20	12~20	14~25.4	16~25.4
Shank Length of Bolt Blanks	mm	6~50	10~75	15~77	15~77	30~130	70~205	15~102	20~152	70~205	25~152	75~262	20~152	100~305	150~460	25~200	100~305	Outer hex35~175 Inner hex35~165	60~254
